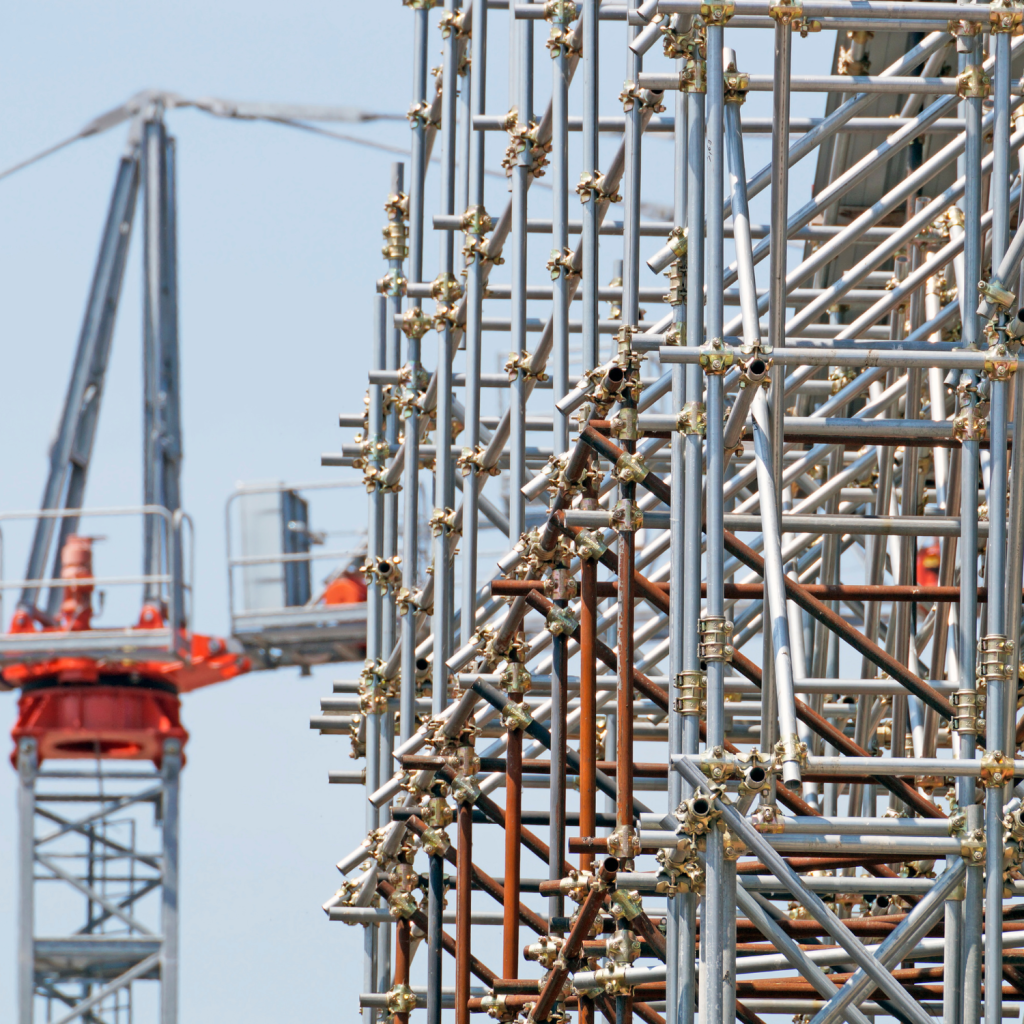

Cantilever scaffolding is an innovative scaffolding system designed to provide safe and efficient access to hard-to-reach areas of a building or structure. Unlike conventional scaffolds that rely on ground support, this system projects horizontally from a structure—making it ideal for sites where space or ground access is restricted.
🔧 What is Cantilever Scaffolding?
Cantilever scaffolding—often referred to as needle scaffolding—is a type of support system where the working platform extends outward from a building or structural surface. It is anchored securely at one end and projects without vertical support beneath the extended section. This makes it a go-to choice for construction, repair, and maintenance tasks on high-rise facades, bridges, and other structures with limited ground accessibility.
🧩 Key Components of Cantilever Scaffolding
Cantilever Beams: Horizontal beams that project from the structure and support the working platform.
Needles: Strong steel or timber members inserted into or through the wall to support the cantilever beams.
Brackets & Braces: Provide diagonal and lateral support, enhancing stability.
Decking or Platform: The surface on which workers perform tasks—typically made of steel planks or hardwood.
Guardrails & Toe Boards: Safety features to prevent falls and secure tools/materials.
Ties and Anchors: Secure the scaffold to the main structure to prevent swaying or collapse.
Counterweights (Optional): Used when extra balance is required, especially for heavily loaded platforms.
Advantages of Cantilever Scaffolding
No Ground Interference: Perfect for areas where placing supports on the ground is impractical (e.g., near busy roads or water bodies).
Access Over Obstacles: Easily bypass balconies, sunshades, or decorative facades.
Saves Site Space: Leaves ground space free for material movement or pedestrian use.
Versatile Applications: Useful for multiple vertical tasks—from painting and plastering to electrical and façade work.
Quick Installation: Reduces downtime with faster assembly compared to full-scale ground scaffolding.
Common Types of Cantilever Scaffolding
Needle Beam Type: Supported by horizontal beams fixed through the structure.
Single-Frame: One frame with horizontal extension, suitable for lighter loads.
Double-Frame: Two support frames offer better load capacity and stability.
Counterbalanced: Equipped with weights to offset the load, especially where direct anchoring is limited.
Trussed Cantilever: Reinforced with trusses for larger platforms or heavy-duty work.
Rolling Cantilever: Includes wheels for mobility; useful for interior ceiling work.
Suspended (Hybrid) Systems: Mimics cantilever design using overhead suspension.
Materials Used in Cantilever Scaffolding
Steel: High load-bearing capacity and long-term durability; most commonly used.
Aluminium: Lightweight, corrosion-resistant—ideal for quick-setup projects.
Wood: Economical, but only suitable for light-duty tasks in dry environments.
Fiberglass: Non-conductive, making it suitable for electrical maintenance work.
Applications of Cantilever Scaffolding
Exterior building façade work (painting, cladding, repairs)
High-rise window installation and replacement
Roofing and parapet wall maintenance
Bridge and overpass inspection and repair
Construction in narrow lanes or above public walkways
Industrial plant maintenance and piping work
Cantilever scaffolding offers a smart, space-efficient alternative to conventional access systems, especially in modern urban construction where ground space is a premium. With proper planning and implementation, it can significantly enhance work efficiency and safety on complex job sites.
